Products Description
- Hex bar female ball valves are high-efficiency quarter-turn valves that use a hollow pivoting ball to control fluid flow.
- Featuring durable construction, reliable sealing and minimal maintenance requirements, they perform well in both on/off and flow regulation applications.
- Suitable for a wide range of pressure and temperature conditions, these ball valves deliver long service life and versatility, making them widely used in oil & gas, water treatment, manufacturing and other industrial fields.
Products Specification
|
Type |
Female Ball valve |
Unit Weight |
0.35kg |
|
Body Material |
SS316 |
Warranty |
1 year |
|
Type of Connection |
Female-Female |
Pressure Range |
1500PSI |
|
Seal Type |
Hard Sealing |
Size |
1/4''-3/4'' |
|
Temperature |
-54℃ to 204℃ |
Manufacturing |
Forging and CNC |
|
Media |
Liquid,Gas,Steam,Oil |
Manufacturing Capacity |
2000pcs/month |
Products Features
- Working Pressure:
- 1500 PSI
- Working Temperature:
- -65 °F to 400 °F (-54 °C to 204 °C)
- Compact and cost-effective design
- Free-floating ball design for automatic seat wear compensation
- Bidirectional flow capability
- Low operating torque for smooth operation
- Each valve is tested with nitrogen or compressed air at rated pressure to ensure leak-tight performance (no visible leakage)

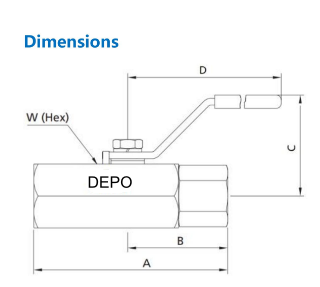

Products Drawings
|
Size |
Orifice |
Cv |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
W(mm) |
|
1/8''female |
0.19in (4.8mm) |
1.25 |
47.0 |
27.4 |
60.0 |
30.0 |
19.1 |
|
1/4''female |
0.19in (4.8mm) |
1.25 |
47.0 |
27.4 |
60.0 |
30.0 |
19.1 |
|
3/8''female |
0.28in (7.1mm) |
2.5 |
51.6 |
30.0 |
60.0 |
32.0 |
22.2 |
|
1/2''female |
0.35in (8.9mm) |
9.25 |
53.0 |
30.0 |
80.0 |
39.0 |
25.4 |
|
3/4''female |
0.47in (12.0mm) |
12.65 |
60.7 |
30.5 |
100.0 |
51.7 |
32.0 |
|
1''female |
0.63in (16.0mm) |
17.35 |
76.5 |
38.1 |
100.0 |
54.8 |
38.1 |
Products Applications
Chemical Processing: Controls the flow of various chemicals in pipelines
Oil & Gas: Regulates oil and natural gas in extraction and transportation systems
Water Treatment: Manages water flow in filtration and treatment facilities
Pharmaceutical: Ensures precise control of liquids and gases in production lines
Food & Beverage: Suitable for handling liquids such as juice, milk, and beer
Our Service
1. 12 months warranty:
● Great quality products
● We stand behind the quality of our products 100%
● All of our items come with a warranty to give you a peace of mind.
● New Guaranteed: All of our items are in new condition in OEM or Original packing.
2. Accept All Payment Methods:
● We usually accept T/T (wire transfer), Western Union, or Paypal.
● Trade Currency: USD or RMB.
● Payment TT 30% deposit in advance, 70% balance paid before shipment.
● (Sample order) T/T / Western union 100% at sight.
3. Strong Package:
Our package method is in perfect condition, or according customized.
4. Fast delivery:
● Shipment term: CIF/CFR/FOB Ningbo/Shanghai China, China.
● Shipment date: shortly if in stocks, 7-20 days after receiving the deposit if bulk orders.
● Shipment way: we will ship your items by sea, by air, or by express (DHL, UPS, FedEx, TNT, EMS).
5. After-sales service:
● Terrific After-Sales Service: 24 Hours Around The Clock And 12 Months Warranty.
● Life-Long Maintenance Service For The Products.
Why Choose Us
1.Stable quality with strict inspection standards
2.Rich experience in industrial valve supply
3.OEM & customized solutions available
4.Fast delivery and reliable service
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer specializing in stainless steel and brass valves and fittings, with strong OEM capability for global markets
2. What is your MOQ?
Standard products: Low MOQ, trial orders supported
Customized products: Depends on design
We support small orders for first cooperation.
3. Can you produce according to drawings or samples?
Yes, we support OEM & custom production.
We can develop molds based on your samples, especially for 1-piece special fittings.
4. What materials do you supply?
Stainless Steel: SS304 / SS316
Brass: HPb59-1 / HPb59-3 /HPb58-3/Lead-free brass
Material test reports (MTC) are available if needed.
5. What is your pressure rating?
Our products are suitable for:
Medium to high pressure applications
Some grease fittings can exceed 10,000 PSI
Exact pressure depends on product type and design.
6. What is your delivery time?
Stock / standard items: 7–15 days
OEM / customized: 20–35 days
Fast production can be arranged for urgent orders.
Stable customers can negotiate better terms.
7. What markets do you mainly export to?
We have rich experience in:
USA
Europe
Middle East
We are familiar with their standards and quality requirements.
8. How do you ensure quality?
100% inspection before shipment
Thread gauge inspection
Pressure / sealing test (if required)
Third-party inspection is acceptable.
9. What thread standards do you support?
NPT (American standard)
BSPT / BSPP (European standard)
We can help confirm thread compatibility.
10. What is your packaging?
Standard export cartons + pallets
Anti-rust protection
Custom packaging & logo marking available.
11. Can you offer competitive pricing?
Yes - we offer very competitive pricing under same quality level, especially for long-term cooperation.
