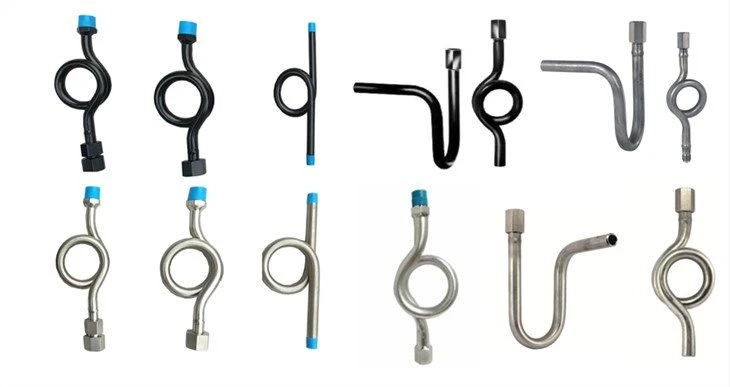

Product name : stainless steel O type syphon tube for pressure gauge
1. Bending angle: 180°
2. Maximum Working Pressure: 6000PSIG (414 Bar)
Maltiply the working pressure by the elevated temperature factors to get the working pressure at elevated temperature
3. Standard Material: 316SS, 304SS and other materials are available upon request.
|
Part No. |
material |
type |
Inlet |
out let |
|
HK-CSOFM0104 |
carbon steel |
O type |
1/4 NPT Male |
1/4 NPT Female |
|
HK-SSOFM0104 |
stainless steel |
O type |
1/4 BSPT Male |
1/4 BSPT Female |
|
HK-CSOMM0104 |
carbon steel |
O type |
1/4 NPT Male |
1/4 NPT Male |
|
HK-SSOMM0102 |
stainless steel |
O type |
1/2 NPT Male |
1/2 NPT Male |
|
HK-CSUFM0102 |
carbon steel |
U type |
G 1/2 |
G 1/2 LH |
|
HK-SUFM0102 |
steel |
U type |
G 1/2 |
G 1/2 LH |
|
Note: Accept customization, BSP BSPT NPT and other threads (Male to Female Swivel) |
||||
Syphon tube major in chemical, marine, aviation and nuclear industry, has a special significance in the high temperature, high pressure and acid corrosion environments.
Drawing :
Product Features
1. Type : Available in Q type,Plate U Type,Straight U Type
2. Maximum working pressure up to 6000 psig (413 bar)
3. Working temperature from -20°F to 900°F (-28°C to 482°C)
4. Material : we can do stainless steel 316/ ss304 , carbon steel
5. Connection : Male x female
6. Thread : S/W,Screwed.NPT,BSP,Male/Female,Swivel type.
7. Tube size: 14*3 mm SCH40,SCH80
8. Installation : O Type Syphons:The Coil Syphon is normally used for vertical installations. U Type Syphons:The U Type Syphon is normally used forhorizontal installations.
Maximum working pressure is 6000psig (413bar).Multiply the working pressure by the elevated temperature factors to get the working pressure at elevated temperature. Standard materials is 316SS and 304SS, other materials are available upon request.
Application
syphon is often used in conjunction with a gauge cock or isolation valve. This helps reduce the temperature of the medium.Condensation forms and accumulates within the loop or bend, providing the gauge protection before it reaches the gauge head. It can also help the gauge with stand rapid pressure surges
