When selecting hydraulic hose fittings, you shouldn't focus solely on the fitting itself.

Hydraulic fittings are actuallyhose, equipment port, and hydraulic circuit The connecting components. Incorrect dimension selection, mismatched thread standards, and incompatible sealing methods can all directly affect installation and operation.

HBFittings' hydraulic products coverJIC, BSP, BSPT, NPT Threaded systems, along with reusable hydraulic hose fittings. Its stainless steel reusable series featuresSS304, SS316, SS316L, specification coverage1/4"–1", applicable toSAE 100R2 / 2SN Hydraulic hose.

Therefore, when selecting equipment, it is recommended to follow the sequence below:

Hose → Hose Size → Fitting Type → Thread → Seal → Pressure → Material → Installation

1. Start With the Hydraulic Hose

The first step is not to choose a fitting, but to confirm the one you are using.hydraulic hose.

At a minimum, you need to know:

Hose standard

Hose I.D.

Hose O.D.

Hose construction

Working pressure

Temperature range

Hydraulic fluid

HBFittings' reusable hydraulic hose fittings are clearly marked as suitable forSAE100R2 or 2SN (100R2) hoses; some products can also be supplied with SAE 100R5 hose configurations.

For example:

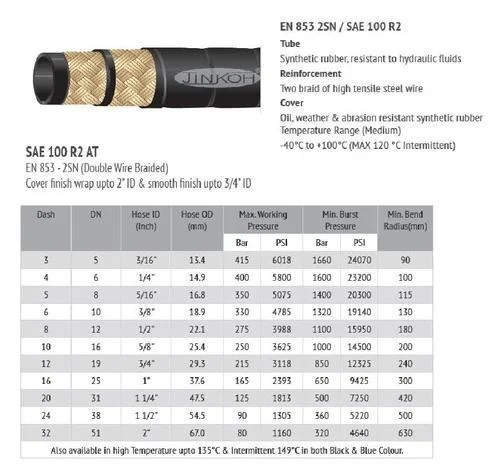

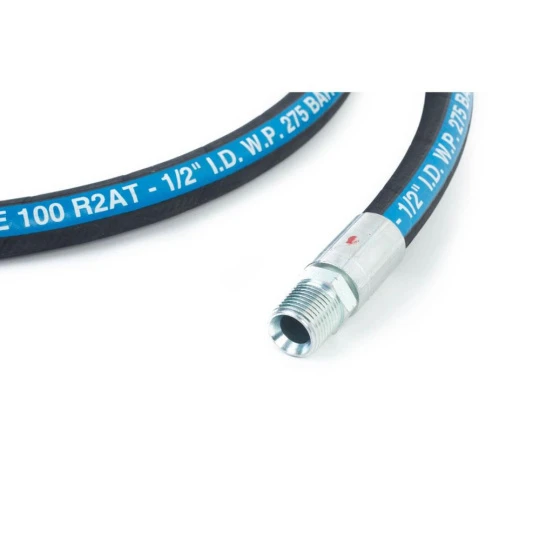

SAE 100R2 / 2SN - 1/2" hose

And:

1/2" hydraulic fitting

They are two completely different amounts of information.

The former can help suppliers determine the specific fitting series, while the latter is still insufficient for completing the selection process.

2. Confirm the Hose I.D.

Hose I.D. is the fundamental parameter for selecting hydraulic hose fittings.

HBFittings' reusable fitting product drawings are directly inHose I.D. List the different models.

For example, its JIC reusable fitting series includes:

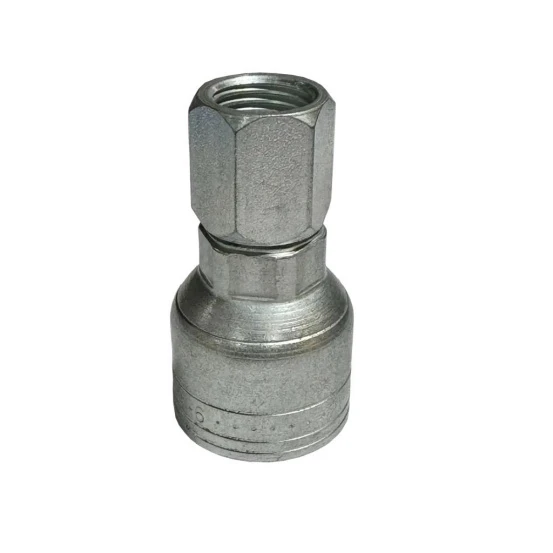

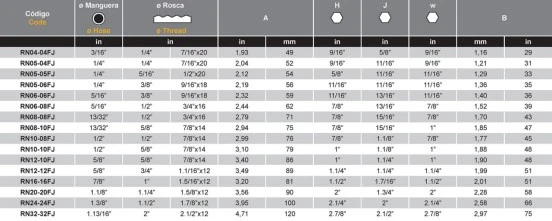

Its product specification page also provides thread size, hose I.D., and fitting dimensions, making it easy to select the appropriate model based on the actual hose.

When making a purchase, don't just write:

1/2" fitting

Suggested writing:

Hose I.D.: 1/2"
Hose: SAE 100R2 / 2SN

3. Choose the Fitting Connection

After confirming the hose, proceed to verify the fitting connection.

HBFittings' hydraulic hose fitting product range includes:

JIC

BSP

BSPT

NPT

BSPP

Other customized configurations

Its product page also lists customization capabilities for standards such as BSP, JIC, SAE, ORFS, and NPT.

Common connections can be categorized as:

JIC 37°

Adopt37° flare seat.

BSPP

British Standard Pipe Parallel.

BSPT

British Standard Pipe Taper.

NPT / NPTF

A commonly used tapered pipe thread in North America.

ORFS

O-ring face seal.

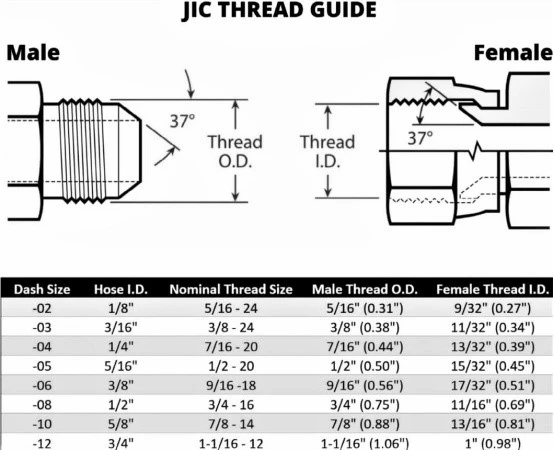

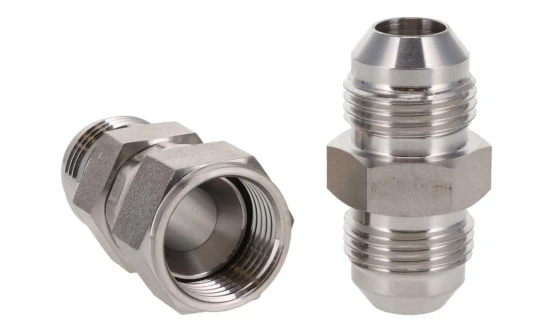

4. JIC 37° Fittings

If the device uses a JIC connection, you need to confirm.37° flare.

HBFittings' stainless steel female JIC swivel reusable fitting according toSAE J514 Standard design, featuring a precision-machined 37° flare and supporting hose sizes from 1/4" to 1".

Key parameters of JIC fittings:

• JIC 37°
• Male / Female
• Swivel / Non-swivel
• Thread
• Hose I.D.
• Material
• Pressure

Special Attention

The sealing location of the JIC is primarily37° flare seatDo not determine whether two fittings are compatible solely based on their thread dimensions.

5. BSP Hydraulic Hose Fittings

BSP is an important series within HBFittings' hydraulic product line.

As can be seen on the official website:

BSP hydraulic hose connectors

BSP female fittings

BSPT male fittings

BSP female swivel fittings

60° cone fittings

45° / 60° / 90° elbow fittings

The HBFittings BSP female 60° conical fitting page providescarbon steel, stainless steel, brass Three material options, with support for standards such as BSP, JIC, SAE, ORFS, NPT, and JID.

BSPP vs BSPT

Do not confuse these two names.

When making a purchase, it should be clearly stated: BSPP or: BSPT

Instead of just writing: BSP

6. NPT / NPTF Selection

NPT/NPTF is commonly found in North American equipment.

But do not put:

NPT

And:

BSPT

Treated as the same type of thread.

Technical documentation from HBFittings indicates that both NPTF and BSPT are tapered threads, but…Thread pitch and thread angle are different and cannot be directly interchanged.. NPTF uses a 60° thread angle, while BSPT uses a 55° angle.

Therefore, it is best to provide the following when making a purchase:

Thread Standard: NPTF
Thread Size: 1/2"-14

Instead of:

1/2" pipe thread

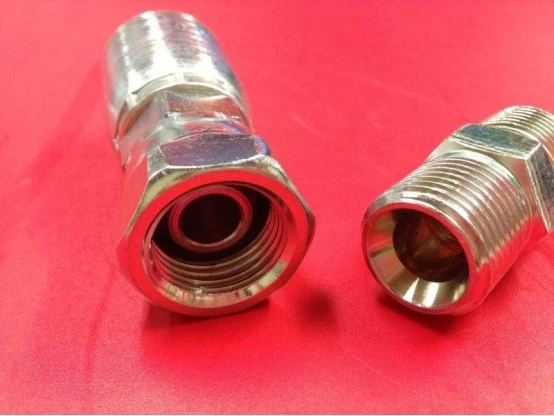

7. Male or Female?

After confirming the standards, it is also necessary to confirm.end connection.

Common:

Male

Female

Female Swivel

Male Pipe

Male JIC

Female JIC

HBFittings' product range includes bothstainless steel male pipe reusable hydraulic hose fittings, there is alsofemale JIC 37° swivel reusable fittings.

For example:

Hose → Female JIC Swivel

And:

Hose → Male NPT

They are two completely different products.

8. Straight, 45° or 90°?

The angle of a hydraulic hose fitting directly affects hose routing.

Straight

Suitable for straight-line connections.

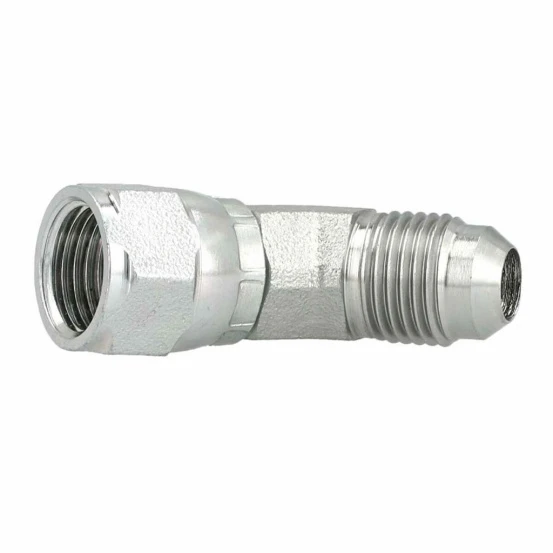

45° Elbow

Suitable for installations with limited space that require a slight change in direction.

90° Elbow

Suitable for situations where the equipment interface is perpendicular to the hose direction.

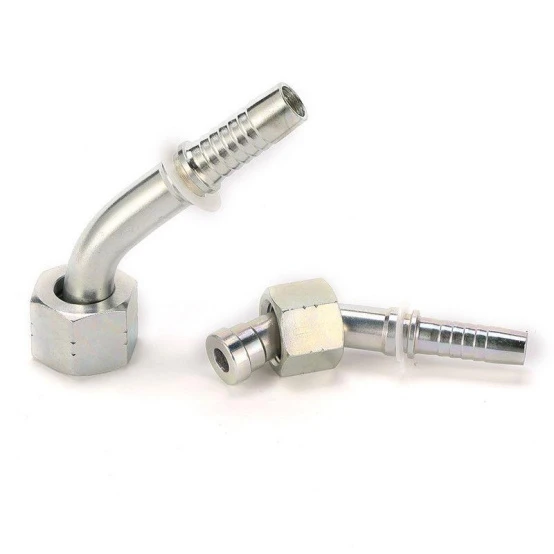

HBFittings' BSP hydraulic hose connector product line includes45°, 60°, and 90° elbow Configuration.

When choosing an angle, don't just consider ease of installation; you should also take into account:

• Hose bending radius
• Port position
• Equipment movement
• Clearance
• Vibration
• Maintenance access

9. Swivel Fittings for Moving Equipment

If the hose needs to be moved during operation, a swivel fitting is worth serious consideration.

HBFittings providesFemale BSP Straight Swivel Hydraulic Hose Fitting and alsoFemale JIC 37° Swivel Reusable Hydraulic Hose Fittings.

Suitable for:

• Construction machinery
• Agricultural machinery
• Hydraulic repair
• Mobile equipment
• Marine equipment

The purpose of a swivel is not merely to "facilitate rotation," but to reduce torsional stress that arises during hose installation and equipment movement.

10. Reusable or Crimp Fittings?

This is a very important factor in actual procurement.

Reusable Hydraulic Hose Fittings

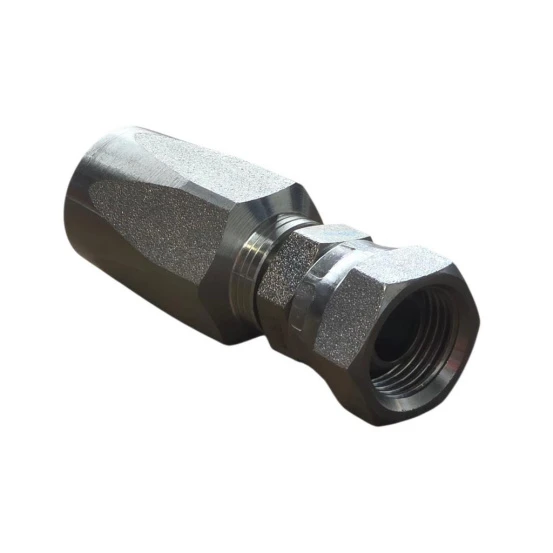

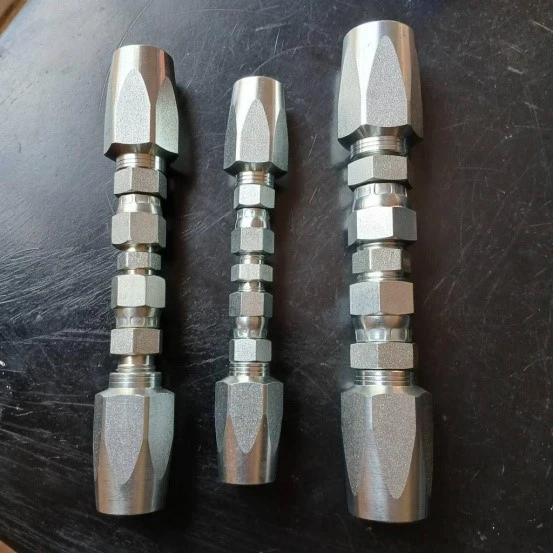

HBFittings' reusable series utilizesthree-piece field-attachable design, On-site assembly can be completed using basic tools, without the need for a crimping machine.

Suitable for:

• Field repair
• Maintenance
• Construction equipment
• Agricultural machinery
• Emergency replacement

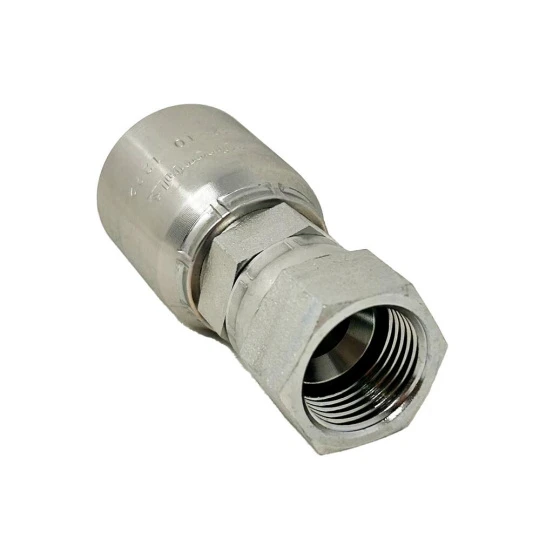

Crimp Fittings

Suitable for mass production of hydraulic hose assemblies in factories.

If customers frequently perform on-site equipment maintenance, reusable fittings are more convenient.

11. Confirm Hose Compatibility

Don't just confirm the hose diameter.

Also, confirm the hose standard.

The HBFittings reusable hydraulic fitting series is specifically designed for:

SAE100R2 / 2SN (100R2).

Some models also offer:

SAE 100R5

Configuration.

When placing an order, it is recommended to provide:

Hose Brand:
Hose Model:
Standard: SAE 100R2 / 2SN
Hose I.D.: 1/2"

If you already have a hose sample, providing photos, the model number, or the actual dimensions is usually more reliable than supplying only a nominal size.

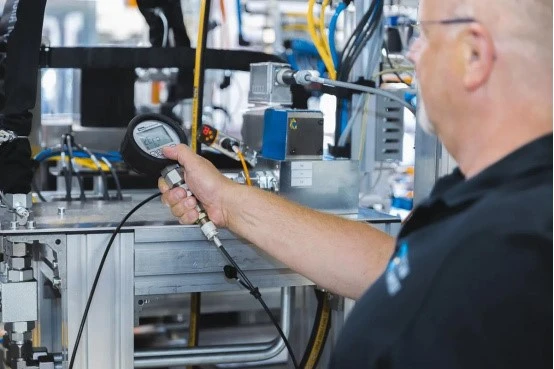

12. Check Working Pressure

Pressure selection shouldn't be based on fit alone.

It is necessary to check simultaneously:

Hose + Fitting + Connection + Adapter + Equipment Port

HBFittings' JIC reusable fitting products are marked asHigh Pressure, and supports pressure certificates.

Therefore, when making a purchase, please provide at least:

Working Pressure

Peak Pressure

Temperature

Fluid

For example:

Working Pressure: 250 bar
Peak Pressure: 300 bar

Comparison:

High pressure

Much more useful.

13. Material Selection

HBFittings' hydraulic hose fittings are manufactured using:

• Carbon Steel
• Brass
• SS304
• SS316
• SS316L

Among them, the main material of the reusable stainless steel series isSS316 / SS304 / 316L.

Carbon Steel

Suitable for:

• General machinery
• Construction equipment
• Agricultural equipment
• General hydraulic systems

Stainless Steel

Suitable for:

• Marine
• Offshore
• Chemical environments
• Humid environments
• Corrosive environments

Brass

Applicable to:

• General fluid systems
• Pneumatic applications
• Lower-pressure applications

Do not select solely based on material prices; instead, you should consider:

Pressure + Fluid + Environment + Temperature

Let's consider it together.

14. SS304 vs SS316 vs SS316L



For HBFittings' stainless steel reusable fittings, you can choose:

• SS304
• SS316
• SS316L

The official website highlights the corrosion resistance of the stainless steel body as a product feature and provides material certificates.

General procurement approach:

Specifically, confirmation should still be based on the medium, temperature, and actual corrosion conditions.

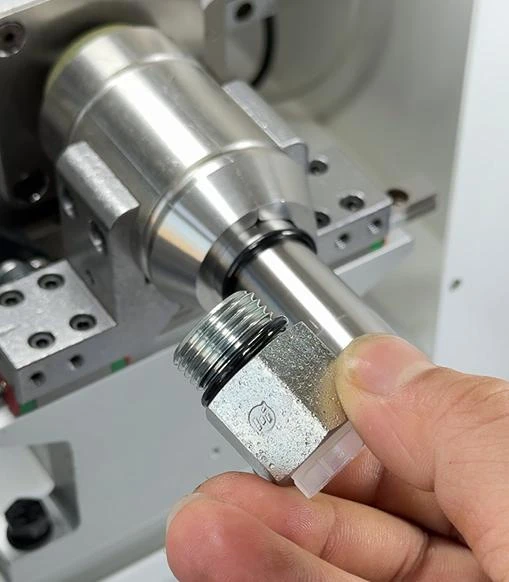

15. Check the Sealing Method

The sealing methods of different hydraulic hose fittings vary.

JIC

37° flare seat

BSP 60° Cone

Sealing is achieved via a cone seat.

HBFittings' BSP 60° conical fitting page explicitly states that it is designed for high-pressure connections and achieves a seal through a 60° cone seat.

ORFS

O-ring face seal

Tapered Thread

For example, NPTF/BSPT relies primarily on tapered thread sealing.

Therefore, one cannot simply look at:

Thread = 1/2"

You also need to know:

How does it seal?

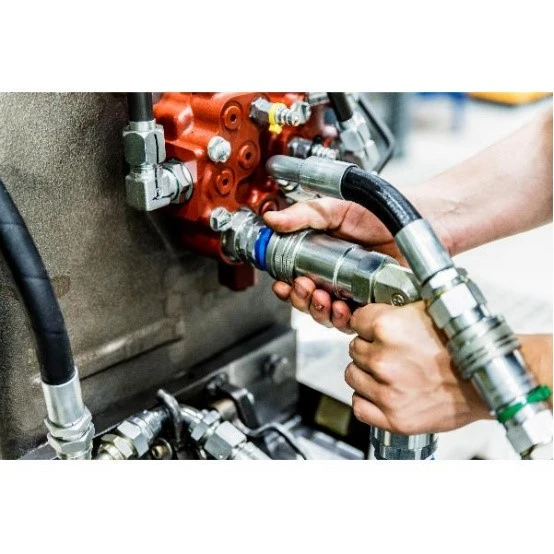

16. Hose End and Equipment Port Must Match

A complete hydraulic hose assembly typically involves two connection ends:

Hose → Fitting → Equipment Port

Therefore, the two ends may be completely different.

For example:

Hose → JIC Female Swivel

The other end:

Male NPT → Pump

What is needed at this moment is:

JIC × NPT combination

Rather than purchasing two identical fittings.

17. Check Port Standard Before Ordering

The device port may use:

• JIC
• NPT
• BSPP
• BSPT
• Metric
• ORFS
• SAE flange

The HBFittings hydraulic fittings product page indicates that its BSP series products are also available in accordance withBSP, JIC, SAE, ORFS, NPT, JID Produced in accordance with the relevant standards.

Therefore, if you are replacing the original hose fitting, the most useful information is usually:

Old fitting + hose model + equipment port photo

Rather than just providing photos of the old fitting's appearance.

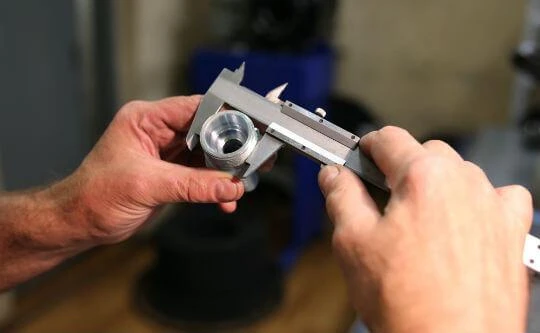

18. Hydraulic Hose Fitting Dimensions

Size confirmation shall include at least:

Hose I.D.

Thread size

Overall length

Hex size

Connection length

Bend angle

Port diameter

HBFittings' product pages directly provide the part number, thread type, hose inner diameter, and multiple dimensional specifications. For example, its JIC reusable series listsA, B, H1, H2, H3 Same size.

If the fitting is to be installed inside equipment with limited space,overall length and hex size Cannot be ignored.

19. Choose by Application

HBFittings' reusable hydraulic hose fitting products are used in:

Construction machinery

Agricultural equipment

Hydraulic repair

Marine & offshore systems

Industrial hydraulic pipelines

Oil & gas equipment.

Construction Machinery

Key points:

Vibration

High pressure

Hose movement

Impact

Agricultural Equipment

Key points:

Outdoor exposure

Dust

Water

Easy maintenance

Marine / Offshore

Key points:

Corrosion resistance

SS316

Saltwater exposure

Oil & Gas

Key points:

Pressure

Thread standard

Sealing

Material traceability

20. Vibration and Hose Movement

If the hydraulic hose is installed:

• Excavator
• Loader
• Tractor
• Crane
• Agricultural machinery
• Mobile hydraulic equipment

Hose movement and vibration need to be considered.

At this point, you can give priority to considering:

• Swivel fitting
• 45° elbow
• 90° elbow
• Proper hose routing

HBFittings' BSP product line includes straight swivel fittings and elbows at various angles, while the JIC series also offers female swivel reusable fittings.

21. Field Repair Requirements

If the device is frequently in:

• Construction site
• Farm
• Mine
• Marine site
• Remote area

If it is to be used, the maintenance approach itself should be a criterion in the selection process.

One of the key features of HBFittings reusable fittings is that…field installation without crimping equipment.

This means that field service technicians do not necessarily need to carry a large crimping machine.

For replacement hoses, emergency repairs, and maintenance, actual use is more convenient.

22. Reusable Fitting Selection at HBFittings

If you're selecting based on HBFittings' current reusable hose fitting products, you can start by evaluating them from three perspectives.

A. JIC 37° Swivel

Suitable for those who need:

JIC connection

37° flare

Swivel

Field installation

of the hydraulic hose assembly.

B. Male Pipe Reusable Fitting

Suitable for:

NPT

BSPP

BSPT

Hose-to-pipe connection

HBFittings' male pipe reusable fitting supportsSAE100R2 / 2SN, with sizes ranging from 1/4" to 1", and available in NPT, BSPP, and BSPT options.

C. General Reusable Hydraulic Hose Fitting

This series offers:

SS304

SS316

SS316L

JIC

BSP

BSPT

NPT

1/4"–1"

And supports custom sizing.

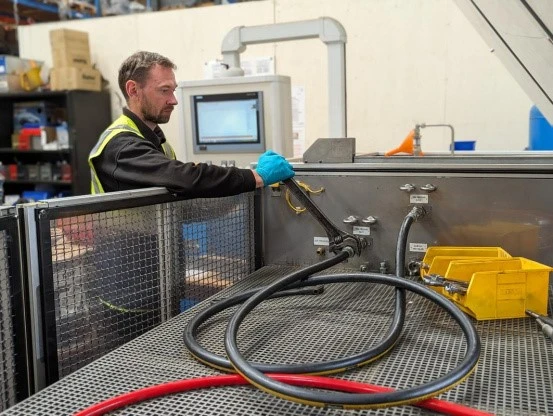

23. Manufacturing and Quality Check

The machining quality of hydraulic hose fittings is primarily reflected in:

• Thread accuracy
• Bore diameter
• ID
• OD
• Surface
• Dimensional consistency

HBFittings' reusable fitting production process includes:

Raw Material → Cutting → Drilling → CNC Machining → First Sample Inspection → In-process Inspection → Final Inspection

Its testing procedure also separately checks:

• Cutting length
• Bore diameter
• ID / OD
• Thread
• Surface

This type of information is particularly important for bulk purchasing.

24. Material Certificates

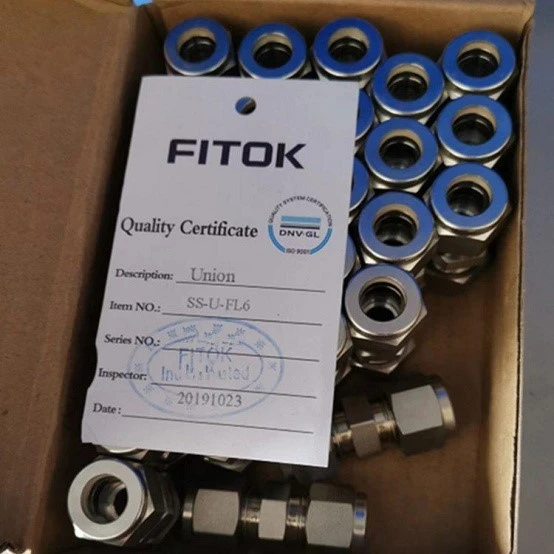

If you are purchasing SS304, SS316, or SS316L fittings, it is recommended to confirm:

• Material grade
• Heat / batch number
• Material certificate
• Chemical composition
• Mechanical properties

HBFittings' reusable hydraulic fitting products explicitly supportmaterial certificates andpressure certificates.

While this may not be a necessary condition for standard repair orders, for:

• Oil & Gas
• Marine
• Industrial equipment
• Engineering projects

These types of documents are even more worth confirming in advance.

25. Custom Hydraulic Hose Fittings

If the standard model cannot directly match the equipment, we can provide:

• Drawing
• Sample
• Part number
• Hose specification
• Thread specification
• Required material

HBFittings' hydraulic product page clearly provides bydrawings and samples Customized services.

Its reusable fitting page also states that it supportssize customization.

For OEM projects, it is recommended to provide the following in a single submission:

2D Drawing + Hose Specification + Thread Standard + Material + Pressure Requirement

This makes it easier to confirm than simply providing a photo of an older model.

26. Hydraulic Hose Fittings Selection Table

27. What Information Should You Send to HBFittings?

If you'd like HBFittings to confirm the part number directly for you, we recommend providing the following information at once:

Hose

Hose standard

Hose I.D.

Hose model

Hose construction

Fitting

Fitting type

Male / Female

JIC / BSP / NPT / ORFS

Straight / 45° / 90°

Swivel / Fixed

Thread

Thread standard

Thread size

Thread pitch if metric

Performance

Working pressure

Peak pressure

Temperature

Hydraulic fluid

Material

Carbon steel

Brass

SS304

SS316

SS316L

Documents

Drawing

Material certificate

Pressure certificate

Inspection report

28. Example RFQ

Don't just post:

Please quote hydraulic hose fittings 1/2".

It can be directly organized into:

Hydraulic Hose Fitting RFQ

Hose: SAE 100R2 / 2SN

Hose I.D.: 1/2"

Fitting Type: Reusable

Connection: JIC 37° Female Swivel

Thread: 3/4"-16 UNF

Material: SS316

Surface: Polished

Working Pressure: 250 bar

Media: Hydraulic Oil

Temperature: -20°C to +100°C

Quantity: 1,000 pcs

Certificate: Material + Pressure

Drawing: Required

HBFittings' JIC reusable products are themselves manufactured in accordance withSAE J514, 37° flare, SS304/SS316/316L, 1/4"–1" Parameters are defined, so this RFQ information can be directly mapped to product selection.

29. Five Checks Before Placing the Order

Before placing your order, we recommend double-checking the following five items:

1. Hose

Hose standard + I.D.

2. Connection

JIC / BSP / NPT / ORFS

3. Thread

Exact thread size and type

4. Performance

Pressure + Temperature + Fluid

5. Material

Carbon Steel / Brass / SS304 / SS316 / SS316L

After these five items have been confirmed, proceed to determine:

Straight / Elbow / Tee / Swivel / Adapter / Reusable / Crimp

30. Quick Selection Flow

You can structure the HBFittings Hydraulic Hose Fittings Selection Guide as a page flow like the one below:

① Identify Hose

↓

SAE 100R2 / 2SN / Other

↓

② Measure Hose I.D.

↓

1/4" / 3/8" / 1/2" / 3/4" / 1"

↓

③ Identify Equipment Port

↓

JIC / BSPP / BSPT / NPT / ORFS

↓

④ Select Connection

↓

Male / Female / Swivel / Adapter

↓

⑤ Select Shape

↓

Straight / 45° / 90° / Tee

↓

⑥ Confirm Pressure & Temperature

↓

⑦ Select Material

↓

Carbon Steel / Brass / SS304 / SS316 / SS316L

↓

⑧ Select Installation

↓

Reusable / Crimp

31. HBFittings Hydraulic Hose Fitting Selection - Recommended Structure

If this article is ultimately used for…hbfittings.net, I suggest that the page not be limited to ordinary articles; instead, HBFittings could directly integrate its own product portfolio into the selection logic.

Hydraulic Hose

SAE100R2 / 2SN

↓

Connection Standard

JIC / BSP / BSPT / NPT

↓

Fitting Type

Reusable / Crimp / Swivel / Adapter

↓

Material

Carbon Steel / Brass / SS304 / SS316 / SS316L

↓

Size

1/4"–1"

↓

Application

Construction / Agriculture / Marine / Oil & Gas / Industrial

HBFittings' current series of reusable hydraulic fittings is perfectly suited to support this content:1/4"–1", SS304/SS316/316L, JIC/BSP/BSPT/NPT, SAE100R2/2SN, material certificate, pressure certificate.

This way, the page doesn't just tell customers "what a hydraulic hose fitting is"; instead, it directly addresses the key concerns of buyers:

Can my hose be used with it?

What type of thread does the device have?

Do you need JIC or BSP?

Do you need reusable or crimp?

SS304 or SS316?

Can this model handle the stress of my job?

Do you have the drawings and certificates?

This approach would be more suitable for HBFittings' B2B product page than simply stringing together descriptions like "high quality, durable, reliable, and widely applicable."
