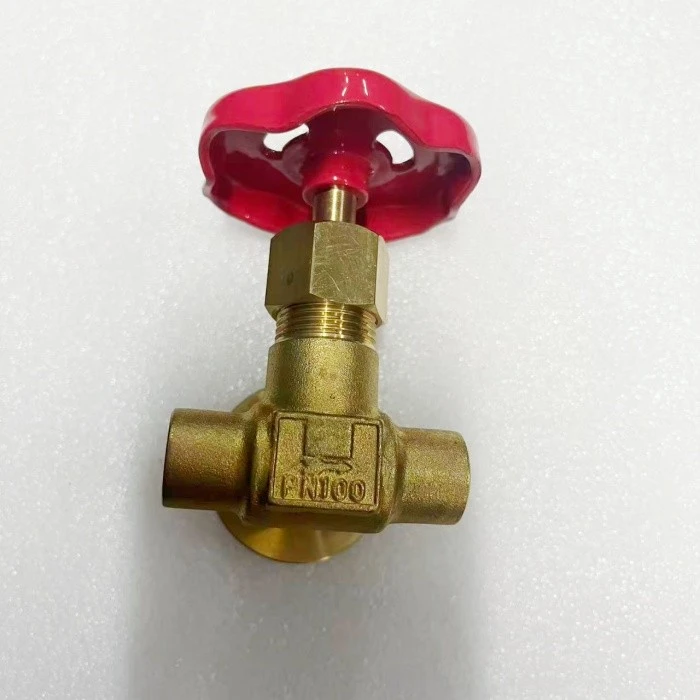

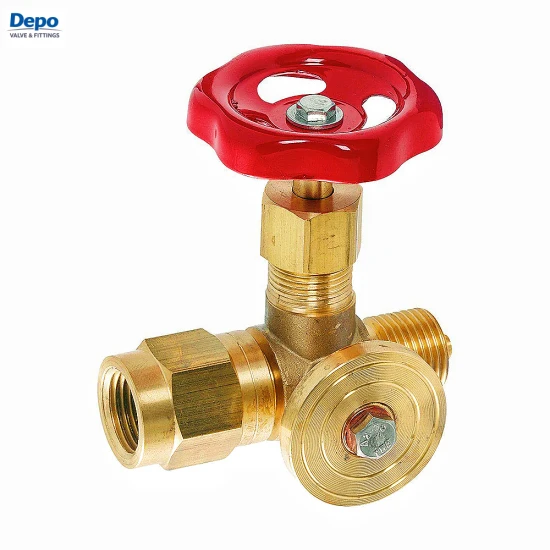

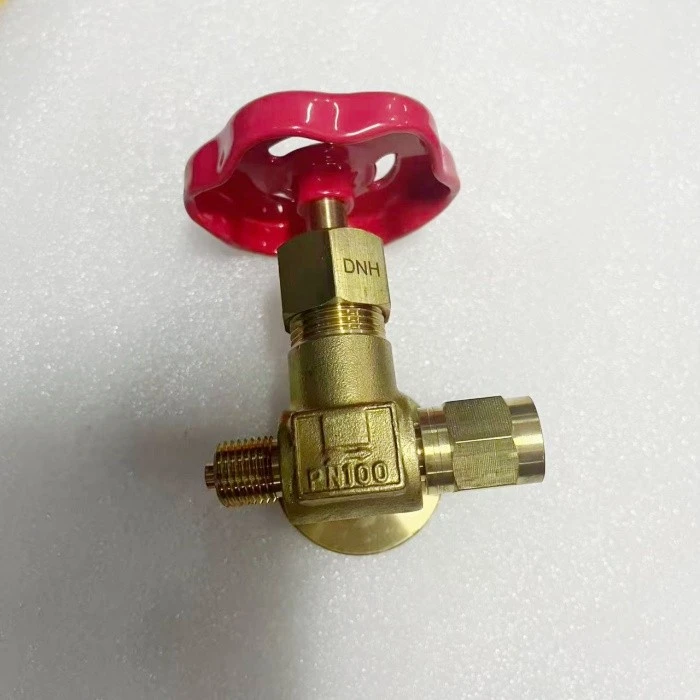

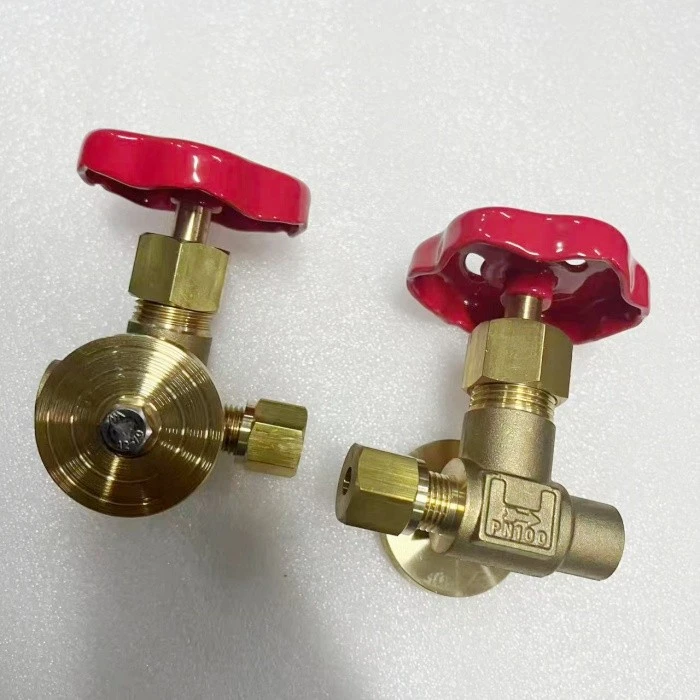

PN 100 Control Pressure Gauge Valve with flange , female thread to male with a bleed hole
- The Brass Control Pressure Gauge Valve is designed for reliable isolation, control, and pressure release in instrumentation systems. Manufactured from forged CW617N brass, the valve features a one-piece body with integrated control flange, ensuring superior strength and leak-free performance.
- The needle-type stem design allows precise flow regulation, while the built-in bleed port enables safe pressure release before maintenance or gauge removal.
- This valve is ideal for protecting pressure gauges from sudden pressure surges and ensuring stable system operation.
⸻
Performance & Features
• Rated up to PN100 (100 bar)
• Suitable for medium to high-pressure systems
• With graphite packing, withstands temperatures up to 185°C
• Ideal for heating systems and industrial applications
• Needle valve structure provides fine and smooth flow adjustment
• Prevents pressure shock to sensitive instruments
• High-quality packing reduces long-term leakage risk
• Built-in bleed (drain) port for safe pressure release
• Facilitates maintenance and gauge replacement
• CW617N forged brass body
• Excellent corrosion resistance and long service life
Products Specification
| DN |
Thread Size |
Nominal pressure (PN) (MPa) |
K(mm) | d(mm) | L(mm) | D(mm) |
HEX max |
Unit weight (Kg) |

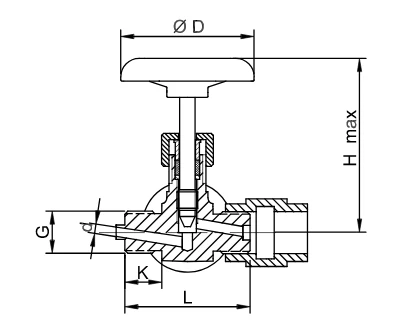

Drawing |
| 8 |
1/4''
|
100 |
13 | 3.0 | 50 | 65 |
85 |
0.36 |  |
| 10 |
3/8'' |
100 |
15 | 3.5 | 54 | 65 |
85 |
0.39 | |
| 15 |
1/2'' |
100 |
20 | 3.5 | 64 | 65 |
85 |
0.50 |
|
Brand: |
DEPO |
Unit weight: |
300g/pcs |
|
Drive mode: |
Manual |
Valve Function: |
Flow control, air volume adjustment, regulation, throttling |
|
Mode of action: |
Double-acting |
Type: |
Three-way-needle-valve |
|
Function and Role: |
Throttling type |
Material: |
brass |
|
Sealing material: |
Polytetrafluoroethylene |
Sealing method: |
Hard seal |
|
Stressful environment: |
High pressure |
Temperature environment: |
High temperature |
|
Flow direction: |
Unidirectional |
Thread: |
NPT/BSPP/BSPT |
|
Applicable industries: |
Pharmaceuticals, drainage, chemicals, environmental water treatment, electricity, petroleum, machinery, petrochemicals |
Applicable medium: |
Oxygen, water, oil, air, steam, liquefied gas, hydrogen, nitrogen |
Products Applications
• Pressure gauge installation systems
• HVAC and heating systems
• Hydraulic and pneumatic systems
• Industrial instrumentation
• Oil, gas, and chemical industries
