Products Description

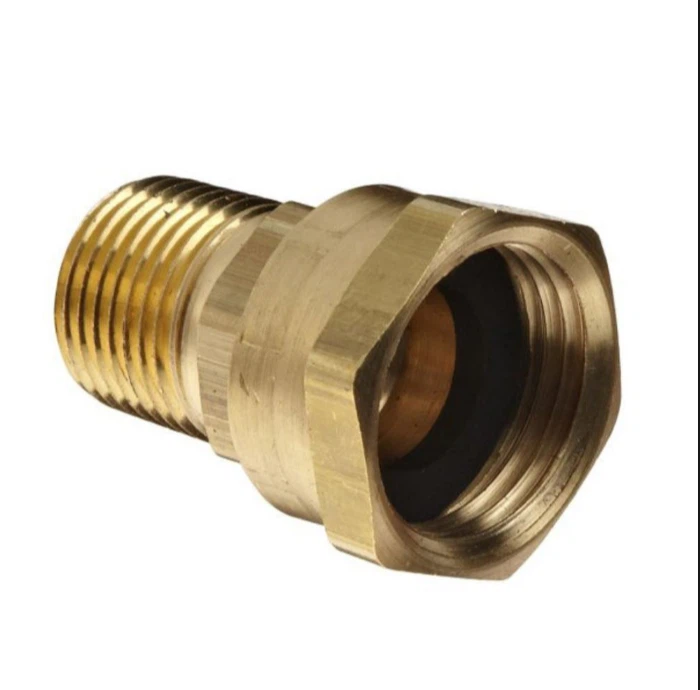

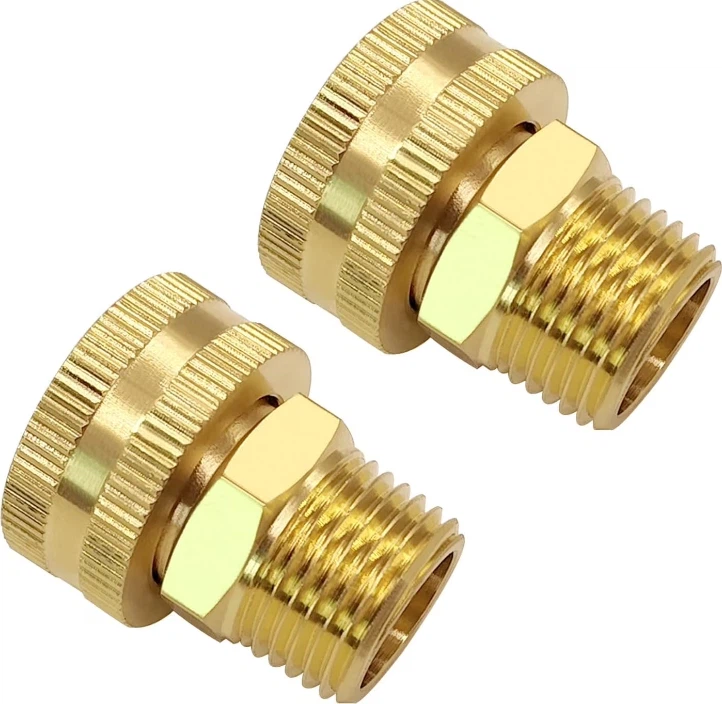

Brass Garden Hose Swivel Fitting,FGH × Male Pipe Thread Adapter
- The Brass Garden Hose Swivel Fitting (FGH × Male Pipe Thread) is designed to connect a standard garden hose to faucets, valves, or piping systems with male pipe threads.
- The swivel female garden hose end allows the hose to rotate freely during installation and operation, helping to reduce hose twisting, kinking, and stress on the connection.
- Manufactured from high-quality brass, this fitting offers excellent durability, corrosion resistance, and reliable sealing performance for outdoor water applications.
Features and Benefits:
• High-quality
• Durability
• Corrosion-resistance
• Strength
Technical specification
|

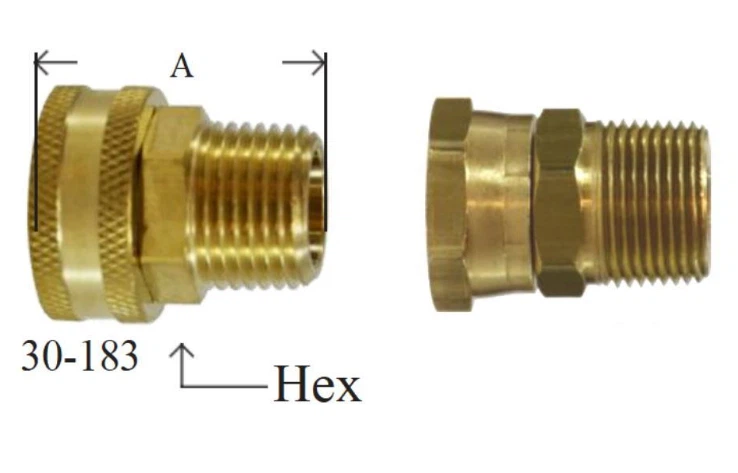

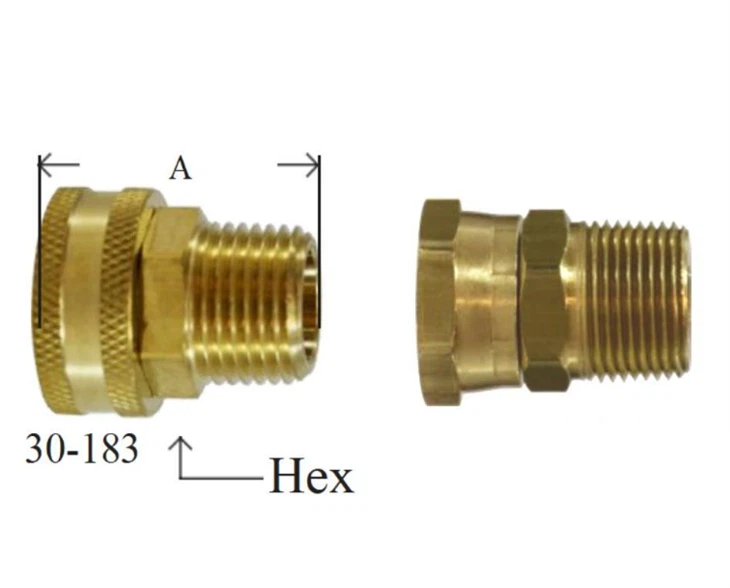

PART# |
FGH * Male NPTF | A | HEX | Approx. Wt. Lbs. |
|
| BGH30-181 | 3/4'' x 1/4'' | 1.43 | 1.18 | 0.13 | |
| BGH30-184 | 3/4'' * 3/8'' | 1.43 | 1.18 | 0.15 | |
| BGH30-183 | 3/4'' *1/2'' | 1.32 | 0.81 | 0.11 | |
|
BGH30-182 |
3/4'' *3/4'' |
1.43 | 1.18 | 0.17 |
| Product type | brass garden hose swivel adapter |
| Material | Common brass , lead free brass |
| Connection | Female garden hose thread x male pipe thread |
| Garden hose thread | 3/4'' FGH, 11-1/2 TPI |
| Pipe thread options | NPT /bsp upon request |
| washer | rubber washer (EPDM , NBR , SBR |
| Recommended working pressure | 75psi ( maximum 150psi ) |
| Media | water |
| MOQ | 200PCS . some size will have stock |
Manufacturing Process
- Hot forged brass body for strenght and density
- CNC-machined threads for dimensional accuracy
- Deburred and cleaned sealing surfaces
- Pressure tested to ensure leak-free performance
Specifications
●ANSI Specifications :ANSI B1.20.1,ANSI372
●Application : commercial, residential
●End connection1: Swivel compression ( olive nut )
●End Connection2:GHT
●End connections:compression x Female GHT thread
●Fitting type : Straight
●Lead law compliant : Yes
●Material :Brass ,low lead free brass
Products feature
1. Brass garden hose Fitting body use brass C3604.sturdy and corrosion-resistant materials are long term to use, which is not easy to get rust or broken, the rubber gaskets can prevent friction, offering you more convenience
2. Easy to use .You can use hand to install the garden hose connector conveniently without any tools, they match garden hose threads easily, quick to connect and disconnect.
3. Temperature rating :-35°-100℉
4. Working pressure : 75psi up to 150psi intermittent
5. For use with residential and commercial grade garden hose
6. Product Tip: MGH = Male Garden Hose, FGH = Female Garden Hose, MPT = Male Pipe Thread, FPT = Female Pipe Thread
Typical applications
- Garden hose connections
- Outdoor faucets and hose bibbs
- Irrigation systems
- Water supply lines
- Landscaping and greehouse watering
