In a hydraulic system,Hydraulic Adapter (hydraulic conversion fitting) Its function is not merely to connect two components, but to establish a reliable connection across differing interface standards, thread specifications, and mounting orientations.

Many problems in hydraulic systems don't stem from the hose or the pump, but from selecting the wrong adapter:

Thread standard mismatch;

The sealing methods differ;

Incorrect material selection;

Insufficient pressure rating;

The installation direction is incorrect.

HBFittings' hydraulic connection products coverJIC, BSP, BSPT, NPT, and other connection standards, while also providingSS304, SS316, SS316L stainless steel hydraulic fittings, suitable for SAE 100R2 / 2SN hydraulic hose systems.

This guide introduces, from a procurement perspective, methods for selecting hydraulic adapters, including:

Adapter type;

Thread selection;

Material selection;

Pressure assessment;

Installation method;

OEM customization requirements.

1. What Is a Hydraulic Adapter?

Hydraulic Adapter is used for connecting:

• Hydraulic hose
• Hydraulic tube
• Valve
• Pump
• Cylinder
• Manifold
• Hydraulic equipment port

The connecting component.

It is typically used for:

1. Thread Conversion

For example:

NPT port → JIC hose

BSP port → NPT fitting

2. Size Conversion

For example:

3/4" port → 1/2" hose

3. Direction Change

For example:

Straight adapter

Convert to:

90° elbow adapter

4. Installation Space Adjustment

When space on the equipment is limited, use an adapter to change the hose's direction.

The selection of a hydraulic adapter requires simultaneous verification of:

Connection Standard + Size + Seal Method + Material + Pressure

When converting between different ports, you must verify the interface standards on both ends, rather than relying solely on physical dimensions.

2. Hydraulic Adapter vs Hydraulic Fitting

Many purchasers tend to confuse:

Hydraulic Adapter

And:

Hydraulic Hose Fitting

The two have different functions.

For example:

A hydraulic hose assembly:

Hydraulic Hose

↓

Hose Fitting

↓

Adapter

↓

Valve Port

Adapters are typically responsible for addressing:

• Thread difference
• Port mismatch
• Installation angle

Question.

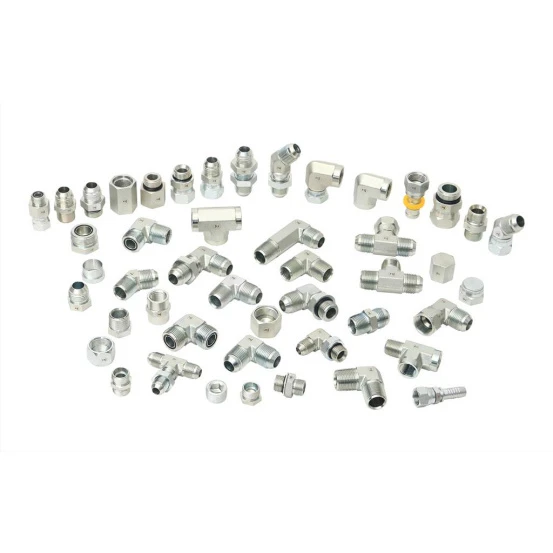

3. Main Types of Hydraulic Adapters

According to their structure, common types of hydraulic adapters are:

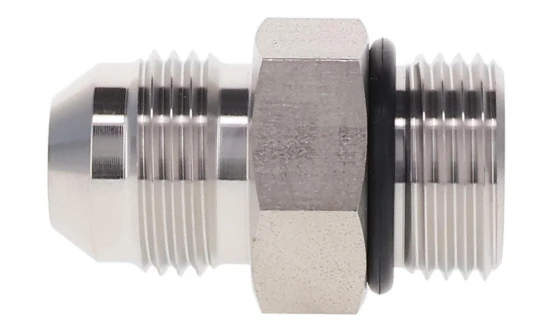

Straight Adapter

Straight connector.

Used for:

Two straight interfaces are connected.

Application:

Hydraulic pipeline

Pump connection

Valve connection

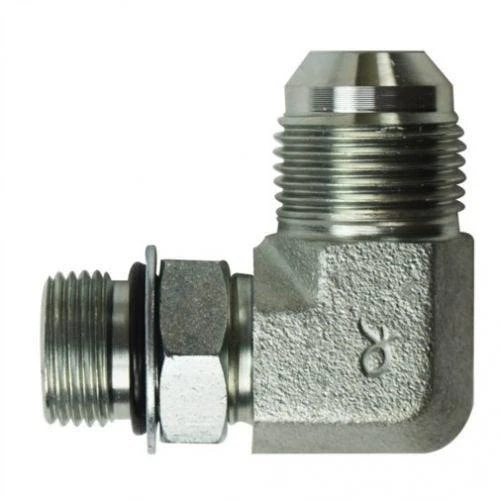

90 Degree Adapter

90°Elbow.

Used for:

Change the hose direction.

Advantages:

Reduce bending stress

Save installation space

45 Degree Adapter

Applicable to:

Locations with limited space but no need for wide-angle turns.

Tee Adapter

Three-way connector.

Used for:

Hydraulic circuit branch.

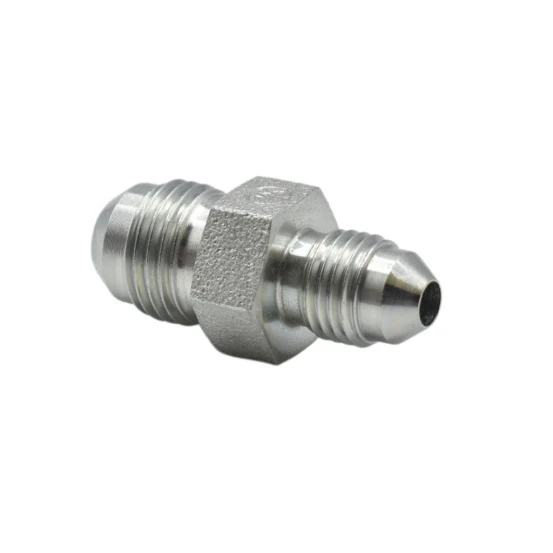

Reducer Adapter

Reducing coupling.

Used for:

Connections of different sizes.

For example:

1/2" → 3/4"

4. Identify Both Ends Before Ordering

The most common mistakes when purchasing a hydraulic adapter:

Just tell the supplier:

Need a 1/2 adapter

This information is insufficient.

The two ends of the adapter may be completely different.

For example:

• JIC Male × NPT Female
• BSPP Male × BSPT Female
• NPT Male × JIC Female

When making your selection, please confirm:

End A

• Thread standard
• Gender
• Size

End B

• Thread standard
• Gender
• Size

A hydraulic adapter is essentially a "combination of two end fittings," and the connection type at each end must be verified separately.

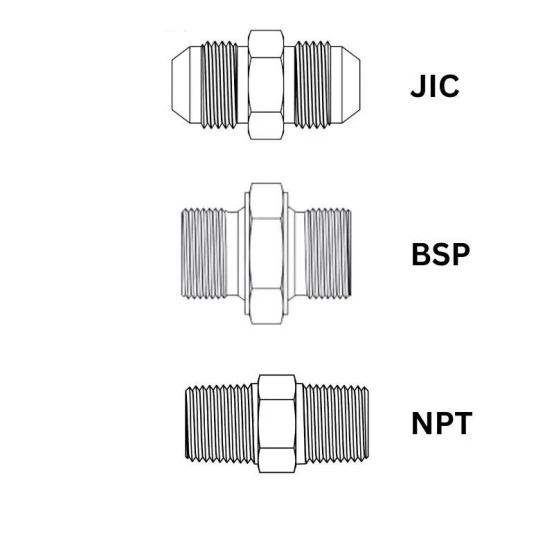

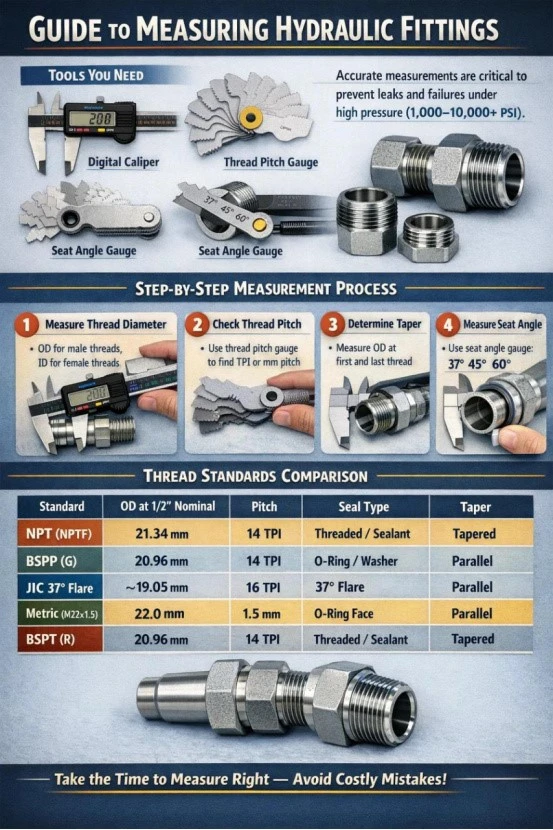

5. Hydraulic Adapter Thread Standards

The HBFittings product portfolio encompasses:

• JIC
• BSP
• BSPT
• NPT

Hydraulic connection standards.

JIC Adapter

JIC Usage:

37° flare sealing

Features:

• High pressure application
• Good repeatability
• Widely used in hydraulic systems

Applicable to:

• Mobile machinery
• Industrial equipment
• Hydraulic hose assembly

NPT Adapter

NPT:

North American pipe thread.

Features:

• Tapered thread
• Common in US equipment

Note:

NPT and BSPT look similar, but they are not interchangeable.

Reason:

• Thread angle differs;
• Different pitch;
• Sealing design is different.

BSP Adapter

The BSP series includes:

BSPP

BSPT

Difference:

When making a purchase, it must be clearly stated:

BSPP or BSPT.

6. Hydraulic Adapter Material Selection

Material determines:

Pressure capability;

Corrosion resistance;

Service life.

Common materials:

HBFittings' stainless steel hydraulic hose fittings are manufactured using:

SS316

SS304

SS316L

And supports SAE 100R2 / 2SN hoses.

7. Carbon Steel Hydraulic Adapter

Carbon steel is the most common material used in industrial hydraulic systems.

Advantages:

• High strength
• Cost effective
• Suitable for high pressure systems

Applicable to:

• Excavator
• Loader
• Hydraulic press
• Industrial machinery

Shortcomings:

Corrosion resistance is limited.

Usually required:

• Zinc plating
• Surface treatment

8. Stainless Steel Hydraulic Adapter

SS316 / SS316L is suitable for:

Marine

Offshore

Chemical environment

Outdoor corrosion environment

Advantages:

Better corrosion resistance

Longer service life

Suitable for harsh environments

For example:

Marine hydraulic system:

Priority consideration:

SS316 adapter

Rather than ordinary carbon steel.

9. Hydraulic Adapter Pressure Rating Selection

The adapter must meet the system pressure.

Confirmation required:

• Working pressure
• Peak pressure
• Hydraulic fluid
• Temperature

Cannot just look at:

Thread size

For example:

Both are:

1/2"

But:

• Material differs;
• Wall thickness varies;
• Different design;

The capacity to handle stress may be entirely different.

Selection principle:

Adapter Pressure Rating ≥ System Working Pressure

10. Hydraulic Adapter Sealing Method

Different adapters use different sealing methods.

JIC

Sealing:

37° flare

Features: Metal-to-metal sealing

NPT

Sealing: Thread interference

BSP

According to the structure:

Thread sealing

Bonded seal

O-ring

When selecting an adapter:

Don't just match the thread.

Needs to match:

Thread + Seal Method

11. Hydraulic Adapter Size Selection

Size confirmation includes:

Hose size

Port size

Thread size

For example:

Error:

Need 1/2 adapter

Correct:

JIC Male 1/2 × NPT Female 1/2

Or:

BSPP Male 3/4 × SAE hose adapter 1/2

12. Hydraulic Adapter for Hose Connection

If the adapter is used for a hose connection, please confirm:

Hose standard

Hose ID

Fitting type

Working pressure

HBFittings reusable hydraulic fittings are suitable for:

SAE100R2 / 2SN hydraulic hose.

13. Choosing Adapter Shape

Consider the following when selecting a structure:

Straight

Suitable for:

Straight-line installation.

45°

Suitable for: Reduce hose bending.

90°

Suitable for: Small space.

Swivel Adapter

Suitable for: The position that needs to be adjusted.

14. Hydraulic Adapter Application Guide

Construction Machinery

Recommendation:

• Carbon steel
• SS304

Follow:

• Vibration
• Shock pressure

Marine Equipment

Recommendation:

SS316

Follow:

Salt water corrosion

Industrial Hydraulic System

Recommendation:

• Carbon steel
• SS316 depending environment

Follow:

Long-term operation

Agricultural Equipment

Recommendation:

• Carbon steel
• SS304

Follow:

Outdoor exposure

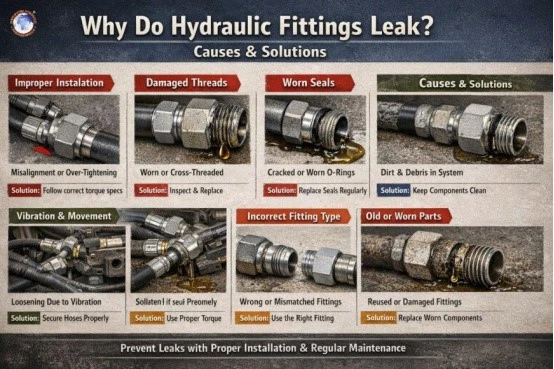

15. Common Hydraulic Adapter Buying Mistakes

Mistake 1

Just look at the size.

Error:

1/2 adapter

Actual needs:

Complete interface information.

Mistake 2

Confusing NPT and BSPT.

They look similar, but cannot be used as direct replacements.

Mistake 3

Ignore the material.

Marine environment using carbon steel:

Easily corroded.

Mistake 4

Ignore the pressure.

Low-pressure adapter for use in high-pressure systems:

There is a security risk.

16. Hydraulic Adapter Selection Checklist

17. Information Required for HBFittings Quotation

When requesting a quote, it is recommended to provide:

Connection

• JIC
• BSP
• BSPT
• NPT

Size

• Thread size
• Hose size

Material

• SS304
• SS316
• SS316L
• Steel

Application

• Equipment name
• Working condition

Pressure

• Working pressure
• Peak pressure

Quantity

• Trial order
• Mass production

18. HBFittings Hydraulic Adapter Selection Logic

Hydraulic Adapter Selection Process:

Application

↓

Identify Both Ports

↓

Confirm Thread Standard

(JIC / BSP / BSPT / NPT)

↓

Select Size

↓

Choose Material

↓

Check Pressure Rating

↓

Confirm Shape

↓

Final Adapter Selection

For the HBFittings product line, when purchasing hydraulic adapters, you should pay particular attention to confirming:

Connection standard;

Thread size;

Material grade;

Hose compatibility;

Working pressure.

HBFittings offers hydraulic connection solutions including JIC, BSP, BSPT, and NPT fittings, with material options of SS304, SS316, and SS316L, to meet the connection requirements of various industrial hydraulic systems.
