twin Ferrule Fitting ( double ferrule fittings )Selection Guide for Gas & Liquid Media

Gases and liquids have vastly different physical properties, which directly lead to completely different logics for ferrule fitting selection. This guide retains all core professional technical data and breaks down complex content in plain logic, making it understandable for non-professionals and directly applicable for engineering personnel.

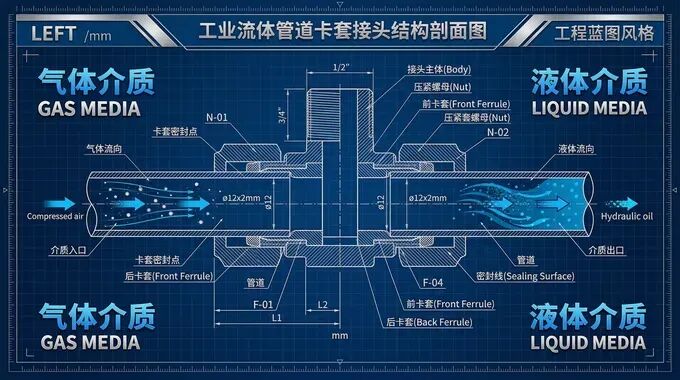

1. Fundamental Property Differences Between Gas & Liquid: Core Basis for Selection

Gases and liquids are essentially different in density, molecular size and compressibility, which form the foundation of fitting selection for sealing, pressure resistance and material matching. No universal ferrule fitting can perfectly adapt to both media types at the same time.

Gas Media: Extremely high compressibility, tiny molecular diameter, easy to leak through micro gaps, and prone to large pressure fluctuations during flow. Core requirements: absolute sealing, high pressure resistance, explosion protection, zero leakage

Liquid Media: Incompressible, wide viscosity range, mostly containing solid particles or accompanied by vibration and temperature changes. Core requirements: wear resistance, anti-loosening, temperature difference tolerance

2. Ferrule Fitting Selection for Gas Media: Strict Sealing & Safety Bottom Lines (Core Data)

Gas molecules escape easily, and even micro-scale gaps can cause leakage. Hazardous gases also involve explosion protection, so all parameters must meet precise standards.

2.1 High-Purity Gas Scenarios (Semiconductor Special Gas Delivery)

Minor leakage or particle contamination will directly cause product scrappage. 316L stainless steel ferrule fittings with surface roughness Ra ≤ 0.8μm and electropolishing treatment must be used to eliminate micro gaps and achieve near-zero leakage.

2.2 High-Pressure Gas Scenarios (Hydraulic High-Pressure Gas Circuits)

Gas compressibility can trigger sudden pressure surges. 63MPa double ferrule fittings are required, with the cutting depth of ferrule edges strictly controlled at 0.25mm-0.5mm to ensure sealing integrity under high pressure.

2.3 Flammable & Explosive Gas Scenarios (Hydrogen, Methane)

For Zone 1 explosion-proof areas, explosion-proof fittings with Ex d IIC T6 certification must be adopted, and the gap between the nut and fitting body is limited to ≤0.1mm to eliminate spark risks at the source and hold the bottom line for explosion-proof safety.

3. Ferrule Fitting Selection for Liquid Media: Resisting Wear & Vibration (Core Data)

Liquids are incompressible, and their flow is often accompanied by particle erosion and pipeline vibration. Priorities are solving wear, loosening and low-temperature embrittlement or high-temperature deformation issues.

3.1 Solid-Containing Liquid Scenarios (Slurry, Coal-Water Mixture)

The inner wall of fittings suffers continuous erosion and wear.stellite alloy hardfaced double ferrule fittings are required, with hardfacing thickness ≥3mm and hardness ≥HRC45, providing ultra-high wear resistance and extended service life.

3.2 Vibration Working Condition Liquids (Marine Diesel Engine Fuel Pipelines)

Liquid pulsation causes high-frequency vibration, leading to easy loosening of ordinary fittings. Ferrule fittings with locking rings are standard configurations, which grip the pipeline tightly via spring plate pre-tightening force to prevent nut loosening and leakage under vibration.

3.3 Extreme Temperature Liquids

For cryogenic liquid nitrogen (-196℃), 304L cryogenic stainless steel with low-temperature impact energy ≥34J is selected to avoid cold embrittlement and cracking; for high-temperature heat transfer oil, special heat-resistant steel fittings are used to withstand high temperatures without deformation.

4. Working Condition Parameter Adaptation: Pressure, Temperature & Structure Selection

4.1 Core Rules for Pressure & Temperature

Pressure redundancy: Fitting nominal pressure ≥1.5 times the maximum working pressure for sufficient safety margin. For pressure difference >1.0MPa (high-pressure water jet cutting), two-stage ferrule fittings are used to release pressure gradually.

High-temperature scenarios (above 300℃, nuclear power plants, thermal power plants): 6Mo super stainless steel is selected for corrosion resistance, paired with bellows compensators and ferrule fittings to absorb thermal expansion stress.

4.2 Structural Matching Selection

High-pressure gas: Prioritize double ferrule fittings and VCR metal-sealed fittings; VCR fittings have a leakage rate as low as 1×10⁻⁹ Pa·m³/s, meeting ultra-strict sealing requirements.

Conventional low-pressure liquids (water utilities): Single ferrule fittings are sufficient; hydraulic systems of mobile heavy equipment: serrated anti-loosening ferrule fittings, with vibration fatigue life ≥20,000 cycles.

5. Material Selection Matrix: Quick Match for Working Conditions (For Beginners)

Seal Material Tips: Soft seals (PTFE/Fluororubber) offer excellent sealing performance but limited temperature resistance (≤250℃); hard seals (metal/ceramic) withstand high pressure and temperature with great wear resistance, but are used cautiously in ultra-high purity leakage-proof scenarios; composite seals (metal skeleton + soft coating) balance both properties and are the preferred universal choice.

6. Installation Rules: Prevent Top-Grade Fittings From Failure Due to Improper Installation (Key Data)

Improper installation is the main cause of fitting leakage and fracture. Keep in mind the three prohibitions and precise installation parameters below:

6.1 Three Prohibitions for On-Site Installation

Never abuse sealant: It easily blocks precision pipelines and contaminates media. There was a case where hydraulic system paralysis caused by sealant misuse led to a maintenance cost of up to 500,000 RMB.

Never forcefully pull or bend pipelines: Lateral force causes fatigue fracture of fittings, which is the top cause of fitting damage.

Never repeat disassembly and assembly blindly: Each disassembly and assembly scratches the sealing surface irreversibly, leading to gradual leakage.

6.2 Precise Installation Parameters

Pre-assembly torque for stainless steel fittings: 15N·m-20N·m

Pre-assembly torque for copper alloy fittings: 8N·m-12N·m

Cutting depth of ferrule inner edge: 0.1mm-0.2mm; exceeding 0.5mm will reduce pipeline service life by 60% sharply.

7. Practical Cases: Quick Reference

Case 1: Long-Distance Natural Gas Pipeline (4.0MPa, Trace Hydrogen Sulfide-Containing Gas)

Main pipeline: ASTM A105N forged steel + nickel-plated double ferrule fittings, balancing high pressure resistance and corrosion protection; instrument connection end: Upgraded to 316L VCR metal-sealed fittings to eliminate trace gas leakage.

Case 2: Polyethylene Polymerization Unit (220℃, High-Viscosity Solid-Containing Liquid)

Feed pipeline: Stellite alloy hardfaced fittings for erosion resistance; circulation pipeline: Duplex steel 2205 V-type ferrule fittings for stable flow and low resistance; discharge end: Equipped with scraper-type ferrule gate valves to remove adhesive materials.
