In high-pressure hydraulic systems, fittings are not merely simple connectors; they are critical components that must withstand pressure, vibration, impact, and prolonged cyclic loading. A fitting that is dimensionally compatible but has an inadequate pressure rating can lead to

• Hydraulic oil leakage
• Hose separation
• Unexpected equipment downtime
• Safety risks

HBFittings' Hydraulic Fittings product line primarily includes stainless steel hydraulic hose fittings, reusable hydraulic hose fittings, compression fittings, and tube fittings, among other series. These products are applied in construction equipment, marine applications, industrial hydraulic systems, oil & gas sectors, and other related fields. The reusable hydraulic hose fittings are specifically designed for high-pressure hydraulic systems and are available in SS304, SS316, and SS316L materials, along with corresponding material and pressure certificates. For purchasers, the key consideration when selecting high-pressure hydraulic fittings is not solely the "maximum pressure," but rather the combination of: System Pressure + Hose Specification + Connection Type + Material + Sealing Structure.

1. What Are High Pressure Hydraulic Fittings?

High Pressure Hydraulic Fittings are used for connecting:

• Hydraulic hose
• Hydraulic tube
• Hydraulic cylinder
• Hydraulic pump
• Hydraulic valve
• Hydraulic manifold

Pressure connection components.

Typical high-pressure applications:

• Excavator
• Loader
• Crane
• Agricultural machinery
• Injection molding machine
• Hydraulic press
• Mining equipment
• Marine hydraulic system

HBFittings' reusable hydraulic hose fittings feature a three-piece, field-attachable design, compatible with SAE 100R2/2SN hydraulic hoses, and enable on-site installation without the need for a crimping machine.

2. High Pressure Hydraulic Fittings Selection Factors



When purchasing high-pressure hydraulic fittings, the following parameters must be confirmed:

HBFittin gs' reusable hosef ittin gs support:

• SAE100R2 or 2SN hose
• JIC
• BSP
• BSPT
• NPT thread
• SS304/SS316/316L materials

And provide a material certificate and a pressure certificate.

3. Understand Hydraulic System Pressure

Before selecting a fitting, first determine the hydraulic system pressure.

Common pressure ratings:

Medium Pressure

Approximately:

70–210 bar

Applications:

• General machinery
• Agricultural equipment

High Pressure

Approximately:

210–350 bar

Applications:

• Construction machinery
• Industrial hydraulic equipment

Ultra High Pressure

Above 350 bar

Applications:

• Heavy hydraulic systems
• Special engineering equipment

Note:

The pressure rating of the fitting must meet:

Fitting Working Pressure ≥ System Working Pressure

At the same time, the following needs to be considered:

• Pressure spike
• Hydraulic shock
• Temperature influence

4. Working Pressure vs Burst Pressure

Many purchasing mistakes stem from confusion:

Working Pressure

Normal continuous working pressure.

For example:

250 bar

Burst Pressure

Burst pressure.

For example:

1000 bar

Burst pressure cannot be used as the normal operating pressure.

When making a selection, one should base it on:

Working Pressure

Instead of:

"What is the maximum pressure it can withstand?"

5. Hydraulic Hose Compatibility

6. High Pressure Hydraulic Fitting Materials

The material has a direct impact

• Pressure performance
• Corrosion resistance
• Service life

Carbon Steel Hydraulic Fittings

compliant,be the same with

• Standard hydraulic machinery
• Construction equipment
• Industrial applications

Advantage

• High strength
• Cost-effective

Requires attention

• Surface treatment
• Rust protection

Stainless Steel Hydraulic Fittings

HBFittings provide：

• SS304
• SS316
• SS316L

Material selection.

Applicable to:

• Marine equipment
• Chemical environment
• Outdoor machinery
• Food/pharmaceutical equipment

SS316 / SS316L

be more suitable for:

• Salt spray environment
• Offshore systems
• Corrosive fluids

7. High Pressure Stainless Steel Hydraulic Fittings

HBFittings's stainless steel reusable hydraulic hose fittings：

• Body material: SS316 / SS304 / 316L
• Size: 1/4"–1"
• Thread: JIC, BSP, BSPT, NPT
• Hose: SAE100R2 or 2SN

SS316 high-pressure fittings are commonly used for:

• Marine hydraulic systems
• Offshore equipment
• Chemical processing equipment
• Hydraulic power units

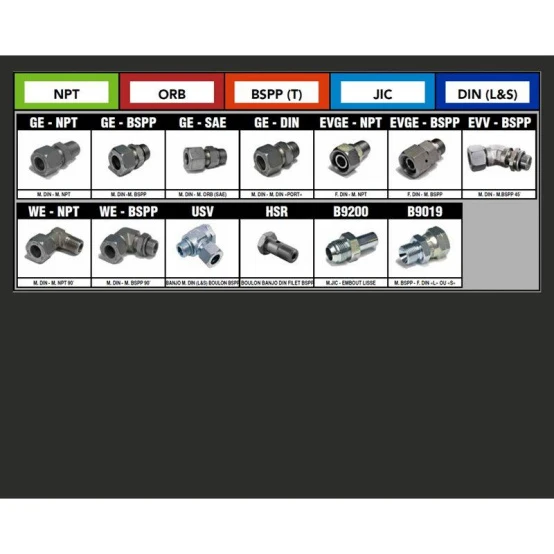

8. Thread Selection for High Pressure Hydraulic Fittings

Common connection standards:

JIC 37°

Features:

• Metal-to-metal seal
• High vibration resistance
• Common in North America

BSP/ BSPT

Features:

• European and Asian machinery common
• BSPP parallel thread
• BSPT tapered thread

NPT

Features:

• American standard tapered thread

Metric

Features:

• European machinery common
• ISO metric thread

HBFittings' reusable hose fitting products support:

Connection types such as JIC, BSP, BSPT, NPT, etc.

9. JIC High Pressure Hydraulic Fittings

JIC fitting usage:

37° flare sealing

Advantages:

• Good vibration resistance
• Easy maintenance
• Reusable connection

Common:

• Mobile equipment
• Hydraulic repair
• Industrial machinery

10. BSP High Pressure Hydraulic Fittings

Common in the BSP series:

• BSPP
• BSPT

Applicable to:

• European hydraulic equipment
• Industrial systems
• Hydraulic pipelines

When making your selection, you must confirm:

European hydraulic equipment

Industrial systems

Hydraulic pipelines

For example:

Error: BSP 1/2 fitting

Correct: BSPP G1/2 Female Hydraulic Fitting

11. Reusable High Pressure Hydraulic Fittings

Reusable fitting main advantages;

• Field installation
• No crimping machine
• Faster maintenance
• Suitable for repair applications

HBFittings's reusable hydraulic hose fitting：

• Three-piece design
• Field attachable
• Compatible with SAE100R2 / 2SN hose
• Supports pressure certificates

Suit:

• Hydraulic service trucks
• Remote construction sites
• Equipment maintenance

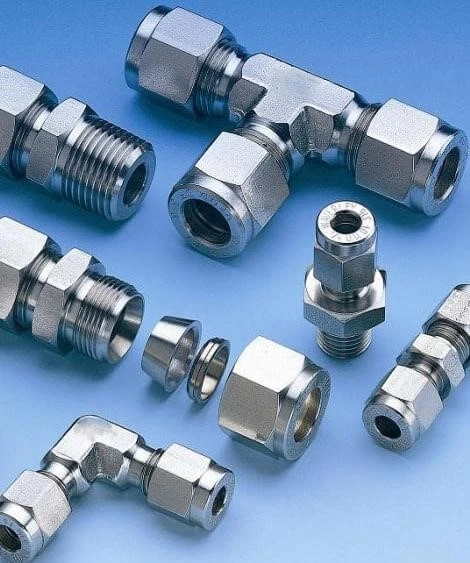

12. High Pressure Hydraulic Tube Fittings





In addition to hose fittings, high-pressure systems also use:

• Tube fittings
• Compression fittings

Applicable to:

• Hydraulic control lines
• Instrumentation
• Process systems

HBFittings offers stainless steel compression fittings, including:

• SS304
• SS316
• Metric sizes
• Inch sizes

And it is applied in fields such as hydraulics, instrumentation, and oil & gas.

13. High Pressure Hydraulic Fitting Inspection

High-pressure fitting requires high machining accuracy.

Main inspections:

Dimension Inspection

Check:

• ID
• OD
• Length

Thread Inspection

Check:

• Thread size
• Pitch
• Gauge

Surface Inspection

Check:

• Burr
• Scratch
• Surface defects

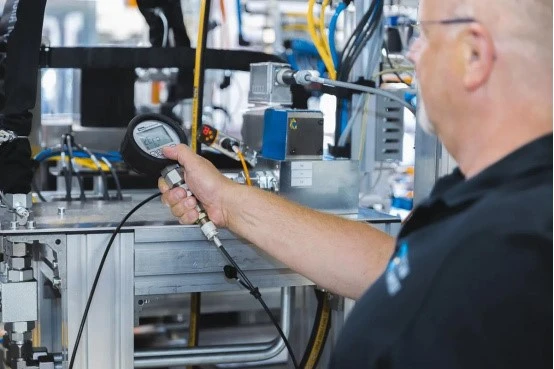

Pressure Test

Confirmation:

• Leakage
• Pressure resistance

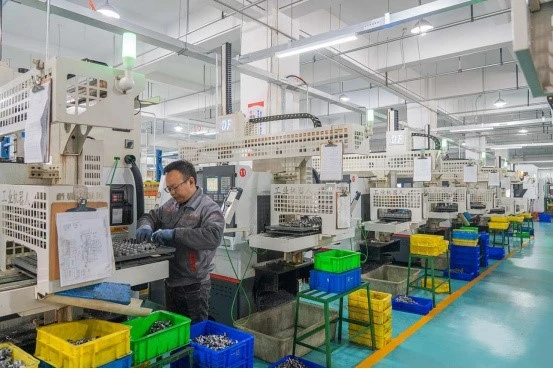

HBFittin gs production process includes:

• Raw material analysis
• CNC machining
• Thread inspection
• Surface inspection

And provide a material certificate and a pressure certificate.

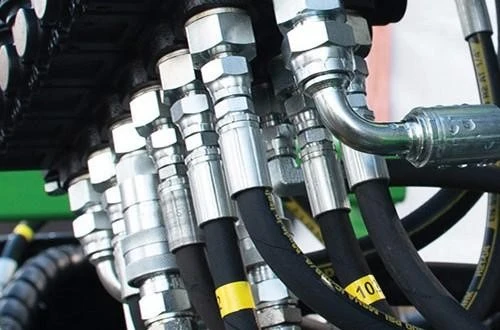

14. High Pressure Hydraulic Fittings for Construction Equipment

Construction machinery is the most typical application of high-pressure fittings.

Includes:

• Excavator
• Loader
• Crane
• Bulldozer

Needs to be considered:

Vibration

Long-term vibration can easily cause connections to loosen.

Pressure Shock

Hydraulic actions generate instantaneous pressure changes.

Outdoor Environment

Facing:

• Dust
• Water
• Temperature changes

Recommendation:

• SS316 fittings
• Reliable sealing structure
• Correct hose matching

15. High Pressure Hydraulic Fittings for Marine Systems



The biggest problem in the marine environment:

Corrosion

Recommendation:

• SS316
• SS316L

Applications:

• Ship hydraulic system
• Offshore equipment
• Marine winch
• Steering system

HBFittings' SS316/316L hydraulic reusable fittings are designed for applications requiring high corrosion resistance.

16. Common High Pressure Hydraulic Fittings Buying Mistakes

Mistake 1
Only look at the size, not the pressure.
Mistake 2
Ignore the hose specification.
Mistake 3
Mixed use of thread standard.
For example:
BSP ≠ NPT
 Metric ≠ BSP
Mistake 4
Incorrect material selection.
Ordinary steel components cannot directly replace SS316 in marine environments.
Mistake 5
Ignore vibration load.
Mobile devices need to account for dynamic operating conditions.

17. High Pressure Hydraulic Fittings Buying Checklist

18. How to Request a Quote from HBFittings

When requesting a quote, it is recommended to provide:

Product:

High Pressure Hydraulic Hose Fitting

Hose:

SAE 100R2 / 2SN

Size:

1/2"

Thread:

BSPP G1/2 Female

Material:

SS316

Pressure:

300 bar

Application:

Construction Machinery

Quantity:

500 pcs

If the complete parameters are unavailable, you may provide:

• Existing sample
• Drawing
• Photos
• Equipment model

HBFittings supports OEM/ODM and offers custom manufacturing based on drawings or samples.

19. High Pressure Hydraulic Fittings Selection Process

Application

↓

Working Pressure

↓

Hose / Tube Type

↓

Connection Standard

↓

Thread Size

↓

Seal Structure

↓

Material Selection

↓

Pressure Test

↓

Final Hydraulic Fitting

For HBFittings' high-pressure hydraulic fittings, the key to procurement is not simply selecting a single fitting model, but rather matching a complete hydraulic connection system:
Pressure+ Hose+ Thread+ Material+ Sealing+ Application
This ensures the stability of the seal and the reliability of the equipment during long-term operation.
